The first shower I tiled taught me one expensive lesson: tile is not the waterproof layer. Grout can slow water down, and cement board can tolerate moisture, but neither should be trusted to protect the wall cavity on its own.
The waterproof membrane for shower is the layer that actually keeps water from reaching studs, subfloor, insulation, drywall, and framing outside the wet area. If that layer is missing, too thin, punctured, or installed with bad seams, the shower can look perfect on day one and still fail quietly behind the tile.
That is why shower waterproofing matters more than the tile you choose. The tile is the finish. The membrane is the insurance policy.
🚿 Quick Answer: Which Shower Waterproofing Membrane Should You Use?
- Shower walls: Sheet membrane, liquid waterproofing membrane, or waterproof foam board system.
- Shower floor: Bonded sheet membrane system or approved shower pan waterproofing system.
- Shower pan: PVC/CPE liner, bonded sheet membrane, or full foam shower tray system.
- Shower niche: Preformed waterproof niche or carefully wrapped membrane with sealed corners.
- Shower bench: Sheet membrane or liquid membrane with reinforced corners and seams.
- DIY beginner: Liquid waterproofing can be easier, but only if applied at the correct thickness.
- Most consistent system: Sheet membrane or foam board system with matching bands, corners, and drain parts.
What Is a Waterproof Membrane for a Shower?

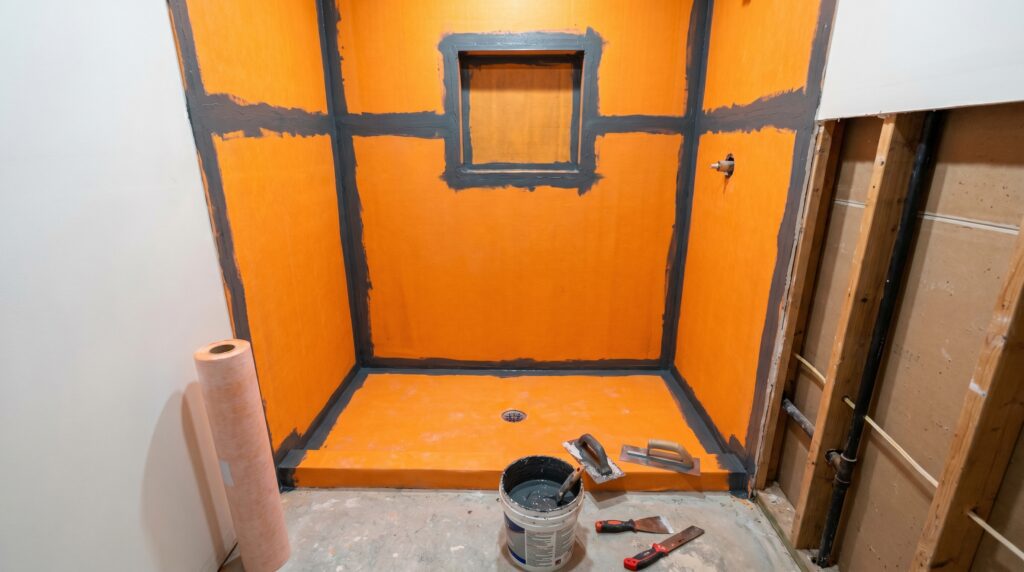

A waterproof membrane for shower is a barrier installed behind or under tile to stop water from reaching the structure of the house. It can be a sheet membrane, a liquid-applied membrane, a foam board system, or a traditional shower pan liner.
Tile, grout, and cement board are not enough by themselves. Water can move through grout lines, tiny cracks, corners, screw penetrations, and seams. Over time, that moisture can lead to mold, rotten framing, loose tile, swollen subflooring, and expensive repairs.
A properly installed shower waterproofing membrane protects the wet area before tile goes on. That means the shower should already be waterproof before it looks finished.
If you would not be comfortable running water on the shower before tile is installed, the waterproofing layer is not ready yet.
Do You Really Need Waterproofing Behind Shower Tile?
Yes. A tiled shower needs waterproofing behind the tile or directly under the tile. Cement board is not the same as waterproofing. It can survive moisture better than drywall, but it does not stop water from passing through the assembly.
That is the misunderstanding that ruins bathrooms. Many DIYers think cement board plus tile plus grout equals waterproof. It does not.
Waterproofing is especially important in:
- Shower walls
- Shower floors
- Shower pans
- Curbs
- Niches
- Benches
- Corners
- Plumbing penetrations
- Steam showers
- Small bathrooms with poor ventilation
If water gets behind tile and cannot dry properly, the damage may stay hidden until grout cracks, tile loosens, baseboards swell, or mold appears outside the shower.
If you already suspect hidden bathroom moisture or mold, see our mold remediation cost calculator before closing walls or covering damage.
Types of Shower Waterproofing Membranes
There are four common ways to waterproof a shower: sheet membrane, liquid membrane, waterproof foam board, and traditional shower pan liner. Each can work when installed correctly. Each can fail when installed carelessly.
| Membrane Type | Best For | Main Advantage | Main Risk |
|---|---|---|---|
| Sheet Membrane | Walls, floors, pans, niches, benches | Consistent thickness and strong system approach | Seams, overlaps, and corners must be sealed correctly |
| Liquid Waterproofing Membrane | Walls, niches, benches, odd shapes | Easy to roll, brush, and shape around details | Often applied too thin or without enough coats |
| Waterproof Foam Board | Full shower remodels and wall systems | Lightweight, fast, and tile-ready | Fasteners, seams, and penetrations still need sealing |
| Traditional Pan Liner | Shower pans and bases | Common and widely available | Must be pre-sloped and installed without low fastener holes |
Sheet Membrane Waterproofing for Showers
A sheet membrane is a thin waterproof layer that is bonded to shower walls, floors, and other surfaces before tile installation. It is usually installed with thinset mortar and sealed with overlapping seams, waterproofing bands, inside corners, outside corners, and compatible drain components.
This type of system is popular because the thickness is already controlled. Unlike liquid waterproofing, you do not have to guess whether you rolled it on thick enough. The main challenge is seam work.
Sheet Membrane Pros
- Consistent waterproof thickness
- Good for walls, floors, pans, niches, and benches
- Works well as a complete shower system
- Can be tiled over after proper installation
- Less guesswork than liquid membranes
Sheet Membrane Cons
- Seams must be overlapped or banded correctly
- Corners require care and compatible pieces
- Wrinkles, voids, and poor bonding can cause problems
- Usually costs more than simple roll-on products
I like sheet membranes for showers where the floor, walls, curb, niche, and drain are being treated as one complete waterproofing system. The fewer random product combinations, the better.
Liquid Waterproofing Membrane for Showers
A liquid waterproofing membrane for shower is rolled, brushed, or troweled onto the substrate. It dries into a flexible waterproof layer. Many DIYers like liquid membrane because it feels familiar: open the bucket, roll it on, and cover the wet area.
Liquid waterproofing can work very well, but only when applied correctly. The biggest mistake is applying it too thin. A wall can look red, green, blue, or gray and still not have the required dry film thickness.
Liquid Membrane Pros
- Easy to apply with roller or brush
- Good for niches, benches, corners, and irregular shapes
- No large sheets to cut and embed
- Often more approachable for DIY projects
- Useful over approved backer boards
Liquid Membrane Cons
- Must be applied at correct thickness
- Usually needs multiple coats
- Drying time matters between coats
- Pinholes and thin spots can leak
- Reinforcing fabric may be required at seams or corners
Waterproof Membrane for Shower Walls
Waterproof membrane for shower walls should cover the wet area behind tile, especially around the shower head wall, valve wall, corners, and lower wall sections where water hits constantly.
For walls, you can use:
- Sheet membrane over approved backer board
- Liquid waterproofing membrane over approved backer board
- Waterproof foam shower board with sealed seams and fasteners
Do not assume cement board alone is enough. Cement board is not damaged by moisture the way drywall is, but moisture can still pass through it.
Wall Areas That Need Extra Attention
- Inside corners
- Bottom wall-to-floor transition
- Shower valve opening
- Shower head pipe penetration
- Niches
- Benches
- Curbs
- Any seam between boards
Waterproof Membrane for Shower Floor
The shower floor is the highest-risk area because it receives constant water and has to direct that water to the drain. A waterproof membrane for shower floor must connect properly to the drain and tie into the walls or pan system.
This is not a place for random shortcuts. If the floor membrane is wrong, water can collect under the tile, soak the mortar bed, leak into the subfloor, or migrate into nearby walls.
Common shower floor waterproofing options include:
- Bonded sheet membrane shower system
- Foam shower tray with membrane or waterproof surface
- Traditional pre-slope plus PVC or CPE liner plus mortar bed
- Manufacturer-approved liquid membrane system for shower floors
A shower floor membrane must work with the drain system. Do not mix random membrane, drain, and mortar methods unless the products are approved to work together.
Waterproof Membrane for Shower Pan and Shower Base
The terms shower pan and shower base are often used loosely, but the waterproofing concept is the same: the bottom of the shower must hold water safely and direct it to the drain.
A waterproof membrane for shower pan may be a traditional liner under a mortar bed, a bonded sheet membrane on top of a sloped surface, or part of a foam shower tray system.
Traditional Shower Pan Liner
A traditional PVC or CPE liner sits inside the shower pan assembly and carries water to the drain. It must be installed over a pre-slope so water moves toward the drain instead of sitting flat under the mortar bed.
The liner also needs careful folding at corners, proper curb treatment, and no fastener holes in the wrong places.
Bonded Sheet Membrane Shower Pan
A bonded sheet membrane system places the waterproofing layer directly below the tile. This can keep the shower assembly thinner and reduce the amount of saturated mortar below the tile when installed correctly.
Foam Shower Base System
Foam shower bases are lightweight, pre-sloped, and designed to be used with compatible waterproofing and drain parts. They can be excellent for remodels, but the seams, corners, and drain connection still matter.
Waterproofing Shower Niches, Benches and Corners
Most shower leaks do not happen in the middle of a flat wall. They happen at details: corners, seams, niches, benches, curbs, valve openings, and drain transitions.
Shower Niches
A shower niche is convenient, but it is also a water trap if built poorly. The bottom of the niche should slope slightly toward the shower, not toward the wall. Every inside corner needs waterproofing.
A preformed waterproof niche can reduce risk, but it still needs sealed edges where it meets the wall system.
Shower Benches
A bench gets direct water, body weight, and lots of seams. It should be sloped slightly toward the drain and completely waterproofed before tile.
Inside Corners
Corners move. That is why corners need special attention with membrane bands, fabric reinforcement, preformed corners, or manufacturer-approved liquid membrane detailing.
Curbs
The curb is one of the easiest places to ruin a shower pan. Avoid unnecessary fasteners through waterproofing where water can reach them.
Can You Tile Directly Over a Waterproof Membrane?
Yes, many shower waterproofing membranes are designed so tile can be installed directly over them with the correct thinset mortar. However, you must follow the membrane manufacturer’s instructions.
Important details include:
- Approved substrate
- Correct mortar type
- Required cure time
- Seam overlap or banding method
- Drain compatibility
- Minimum dry film thickness for liquid membranes
- Flood testing instructions for shower pans
Do not assume every membrane works with every tile, mortar, drain, or board system.
Liquid vs Sheet Waterproofing Membrane: Which One Should You Choose?
Both systems can work. The better choice depends on your skill level, shower design, budget, and how comfortable you are with seams or coating thickness.
| Situation | Better Choice | Why |
|---|---|---|
| Beginner DIY wall waterproofing | Liquid membrane | Easy to roll and brush, but thickness must be correct |
| Full shower system | Sheet membrane or foam board system | Better system control for walls, pan, seams, and drain |
| Niches and odd shapes | Liquid membrane or preformed niche | Easier to coat irregular details |
| Shower floor and drain connection | Approved shower pan system | Drain compatibility is critical |
| Most consistent thickness | Sheet membrane | Factory thickness is already controlled |
How to Waterproof a Tile Shower Before Tiling
This is the basic order I follow conceptually. Always adjust based on the specific product system you choose.
- Frame and prepare the shower area: Make sure walls are flat, solid, and properly framed.
- Install approved backer board or shower board: Use a substrate approved for wet areas.
- Treat seams and corners: Use compatible mesh, bands, preformed corners, or sealant depending on the system.
- Waterproof walls: Apply sheet membrane, liquid membrane, or waterproof board seam treatment.
- Waterproof niche and bench: Slope horizontal surfaces and seal all corners.
- Waterproof shower pan or base: Use a system compatible with your drain.
- Seal pipe penetrations: Protect valve openings, shower head pipes, and fastener points.
- Let products cure: Do not rush liquid membranes or sealants.
- Flood test the pan if applicable: Test before tile hides the waterproofing.
- Tile with compatible mortar: Follow the waterproofing system instructions.
Common Shower Waterproofing Mistakes
1. Thinking Tile and Grout Are Waterproof
Tile and grout are finish materials, not a complete waterproofing system. Water can still move through the assembly.
2. Applying Liquid Membrane Too Thin
Color coverage is not the same as correct thickness. Many liquid membranes require multiple coats and proper dry film thickness.
3. Forgetting Niches and Benches
Niches and benches collect water. They need careful waterproofing, sloped surfaces, and sealed corners.
4. Mixing Incompatible Systems
Randomly combining drains, membranes, boards, sealants, and mortars can create weak points. A complete system is safer.
5. Skipping the Flood Test
If your shower pan can be flood tested, test it before tile installation. Finding a leak after tile is installed is much worse.
6. Screwing Through the Membrane in the Wrong Place
Fasteners through a waterproof layer can create leaks, especially low on curbs or shower pans.
7. Not Sealing Corners and Seams
Flat surfaces are easy. Seams and corners are where many showers fail.
8. Using Regular Drywall in the Wet Area
Do not use regular drywall as a wet-area substrate unless the specific shower system explicitly allows it and you follow that system exactly.
What I Would Use in Different Shower Projects
If I were waterproofing a simple tub surround, I would be comfortable with an approved backer board and liquid membrane or a sheet membrane over the wet area.
For a full walk-in tile shower with tiled floor, niche, bench, and curb, I would lean toward a complete sheet membrane or foam board shower system because the drain, corners, bands, and wall-to-floor transitions are designed to work together.
For a shower niche add-on, I would use a preformed waterproof niche or treat the niche like the highest-risk area in the wall.
For a shower pan, I would not improvise. I would pick one approved method and follow it from pre-slope to drain connection.
Final Verdict: What Goes Behind Shower Tile?
A proper waterproof membrane for shower goes behind or directly under the tile, depending on the system. The right choice may be a sheet membrane, liquid waterproofing membrane, foam board system, or traditional shower pan liner.
For walls, liquid or sheet membranes can both work. For shower floors and pans, the membrane must be part of an approved drain and pan system. For niches, benches, curbs, and corners, detail work matters more than the product label.
My simple rule is this: choose one complete waterproofing method, follow the manufacturer’s instructions, waterproof every seam and corner, and never rely on tile and grout to protect the house.
📚 More Home Improvement Guides
Working on moisture-prone home projects? These guides can help:
Frequently Asked Questions
Do you need a waterproof membrane behind shower tile?
Yes. Shower tile needs a waterproofing layer behind or directly under the tile. Tile, grout, and cement board are not enough by themselves to protect framing and wall cavities from moisture.
Is cement board waterproof?
Cement board is water-resistant, but it is not a waterproof membrane. It can tolerate moisture, but water can still pass through it unless a waterproofing system is added.
What is the best waterproof membrane for shower walls?
For shower walls, sheet membrane, liquid waterproofing membrane, and waterproof foam board systems can all work when installed correctly. The best choice depends on your project, budget, and comfort level with seams or coating thickness.
What is the best waterproof membrane for a shower pan?
For a shower pan, use an approved shower pan waterproofing system such as a PVC/CPE liner, bonded sheet membrane system, or compatible foam shower base system. The drain connection is critical.
Is liquid waterproofing membrane good for showers?
Yes, liquid waterproofing membrane can work well in showers if applied at the required thickness, with proper drying time, enough coats, and reinforced seams or corners where required.
Is sheet membrane better than liquid membrane?
Sheet membrane provides consistent thickness and is excellent for full shower systems. Liquid membrane is easier around odd shapes but can fail if applied too thin. Both can work when installed correctly.
Can you tile directly over shower waterproofing membrane?
Yes, many shower waterproofing membranes are designed for tile to be installed directly over them with compatible thinset mortar. Always follow the specific manufacturer’s instructions.
Do shower floors need waterproof membrane?
Yes. Shower floors need waterproofing that connects properly to the drain and pan system. This is one of the most important areas to waterproof correctly.
How many coats of liquid waterproofing membrane do you need?
Most liquid waterproofing systems require multiple coats, but the exact number depends on the product. Follow the manufacturer’s required wet film or dry film thickness, not just the color of the coating.
Can you waterproof over drywall in a shower?
Regular drywall is usually not recommended in wet shower areas unless a specific approved shower system allows it and all instructions are followed exactly. Approved backer board or waterproof shower board is usually safer.
Should you flood test a shower pan?
Yes, if the shower pan system allows or requires a flood test, test it before tile installation. A flood test can reveal leaks while they are still easier to fix.
