Max CFM 6 Inch Duct (2026): Fixing My 800 CFM Hood Mistake

I recently upgraded my kitchen with a powerful 36-inch gas cooktop and paired it with an 800 CFM ducted range hood. I was excited to finally have serious ventilation. To save time and money, I decided to reuse the existing 6-inch exhaust duct running through the wall from the old 400 CFM hood. Big mistake.

The moment I turned the new hood on high, it sounded like a jet engine inside the wall. The drywall vibrated, the hood rattled, and it barely pulled any smoke from the cooktop. Grease and odors still hung in the kitchen. I shut it off, started researching airflow physics, and quickly discovered I had blown past the max CFM 6-inch duct limit. Pushing 800 CFM through a 6-inch pipe created massive static pressure, like trying to breathe through a straw while sprinting. The motor was working overtime, the airflow was choked, and the noise was unbearable.

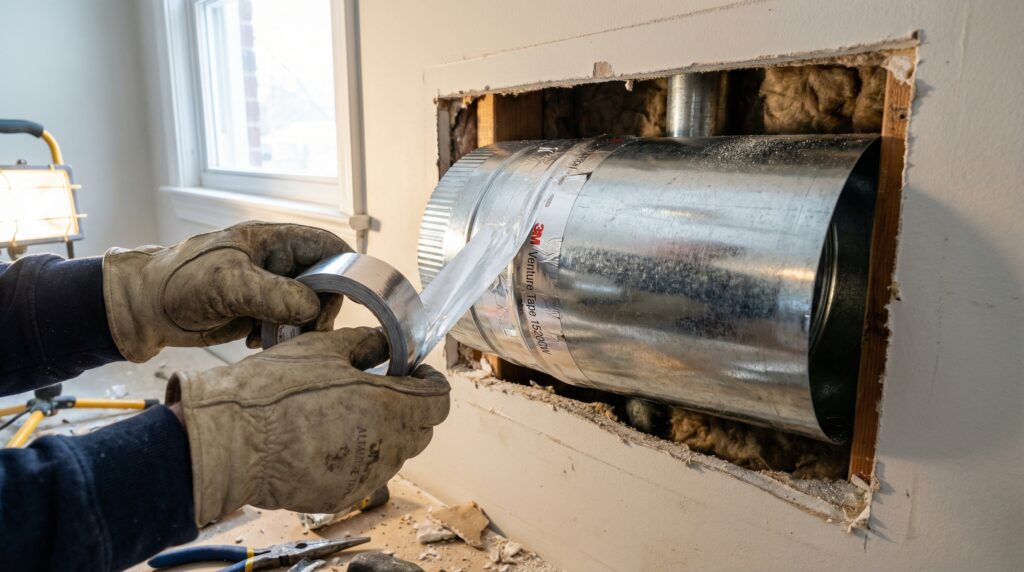

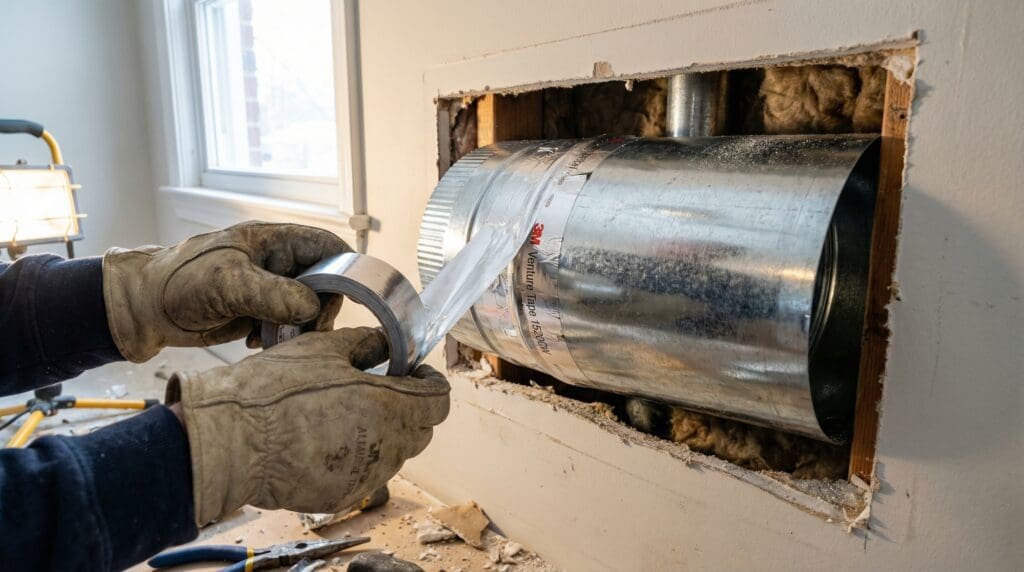

I had to tear open the drywall, cut a larger hole through the exterior siding, and upgrade the entire duct run to 8-inch rigid metal. The difference was night and day: quiet, powerful suction, and no more vibration. I am sharing my exact blueprint here so you don’t make the same expensive and frustrating mistake.

The Core Rule: Maximum CFM for 6 Inch Duct

A 6-inch round duct has a hard performance limit. In real-world residential installations, it can effectively handle about 400 CFM with acceptable noise and pressure drop. The absolute maximum CFM for a 6-inch duct, according to most experts (and manufacturers), is 600 CFM. Anything above that, and you start fighting physics.

Why? Air velocity and friction. At 800+ CFM, the air moves so fast through the small pipe that friction with the walls creates a high static pressure. The hood motor has to work much harder; it gets louder, and the actual airflow at the hood drops dramatically. I measured mine with an anemometer after the upgrade—the 6-inch duct was delivering less than 350 CFM of real, usable suction even though the hood was rated for 800 CFM.

The max cfm 6 inch duct limit is therefore 600 CFM—and even then, only if the run is short and straight. Longer runs, bends, or flexible duct make the effective limit even lower.

Standard Ducting Sizes and CFM Matching Chart

Here is the practical breakdown of standard ducting sizes I now use when sizing ductwork:

• 4-inch duct: Up to 150 CFM (bathroom fans only)
• 6-inch duct: Up to 400 CFM effective / 600 CFM absolute maximum
• 8-inch duct: Up to 800–900 CFM (ideal for most 30–36 inch high-CFM hoods)
• 10-inch duct: Up to 1200–1500 CFM (professional ranges and commercial-style hoods)
• Dual 8-inch or 10-inch: Needed for anything over 1200 CFM

For a 1200 cfm duct size, you almost always need a 10-inch round or a rectangular equivalent. For a 600 cfm duct size, you can sometimes get away with a 6-inch if the run is very short and straight, but an 8-inch is quieter and more efficient.

I now refuse to install any hood over 600 CFM on a 6-inch duct. It is simply not worth the noise, motor strain, and poor performance.

What Happens When You Exceed the Limit (My Real-World Experience)

When I first tested the 800 CFM hood on the old 6-inch duct:

• The motor screamed at full speed.
• The wall vibrated from turbulence.
• Smoke from the back burners barely moved.
• Grease built up inside the duct faster because the velocity was too high.

After upgrading to an 8-inch rigid duct, the hood now runs on medium most of the time, pulls smoke instantly, and is whisper-quiet. The motor will also last years longer because it is not fighting constant back-pressure.

Additional Rules I Now Follow for Every Range Hood Install

• Always use smooth rigid metal duct—never flexible.
• Keep duct runs as short and straight as possible (every 90-degree bend costs you roughly 10–15% airflow).
• Insulate the duct where it runs through unheated spaces to prevent condensation.
• Terminate with a proper roof cap or wall cap that has a backdraft damper.
• Match the duct size to the hood collar—never reduce diameter.

Final Thoughts from Real DIY Experience

My 800 CFM hood is now one of the best kitchen upgrades because I finally sized the ductwork correctly. The lesson was expensive in time but cheap in money: never assume an old duct can handle a new high-CFM hood. Check the max CFM limit for 6-inch duct first and upgrade if needed. The difference in performance, noise, and longevity is massive.
