Closed Valley Roof: What It Is, Why It Leaks & When Replacement Makes Sense

When installing a new roof, the valleys are one of the most important details to get right. A roof valley is the V-shaped intersection where two sloping roof planes meet and channel water toward the gutters. If that valley is installed poorly, the roof can leak even when the shingles still look new.

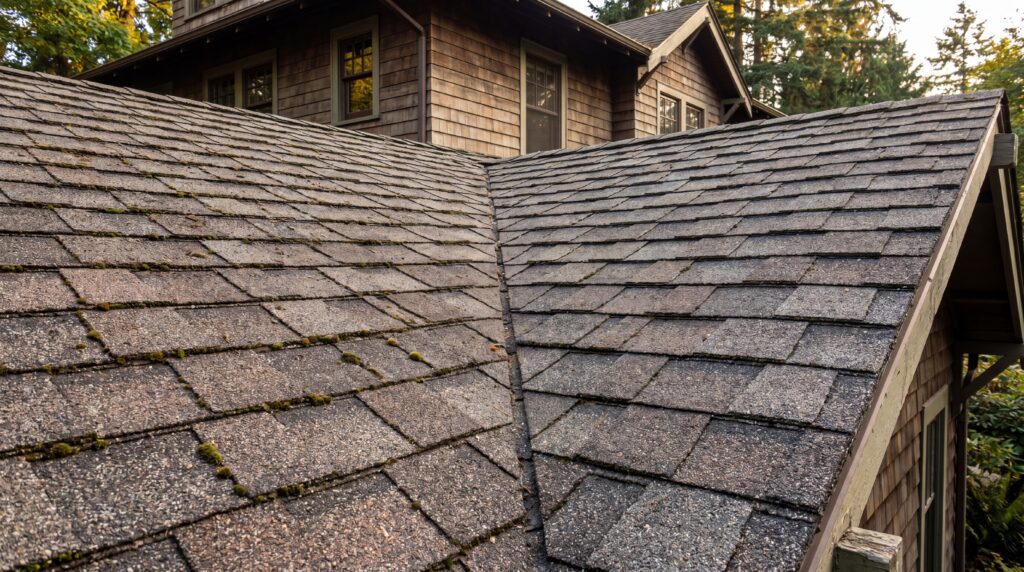

A closed valley roof is one of the most common valley styles on modern asphalt shingle roofs because it creates a clean, continuous look without exposed metal. But it also puts heavy water flow directly over shingles, which means installation quality, underlayment, nail placement, and drainage matter a lot.

If you are comparing roof replacement quotes, understanding closed valleys helps you ask better questions before choosing a contractor. And if your existing valley is leaking on an older roof, it may be a warning sign that patching is no longer the most cost-effective long-term option.

What Is a Closed Valley?

A closed valley, often called a closed-cut valley, is a roofing method where asphalt shingles cover the valley intersection between two roof planes. Unlike an open valley, you do not see a strip of exposed metal running down the roof.

During installation, shingles from one roof plane are run across the valley. Then shingles from the intersecting roof plane are installed over them and cut in a straight line near the valley center. This creates a clean, continuous look while directing water down the roof.

Closed valleys are popular because they blend with the rest of the roof. From the ground, the roof looks smoother and more uniform than a roof with exposed metal valley flashing.

Closed Valley vs. Open Valley

The biggest choice in asphalt shingle roof valley design is usually closed valley vs open valley. Both can work when installed properly, but they look different and age differently.

Closed-Cut Valley vs Woven Valley

Not every closed valley is installed the same way. Two common types are closed-cut valleys and woven valleys.

Closed-Cut Valley

A closed-cut valley is the most common method on modern architectural shingle roofs. One side of shingles runs through the valley, and the top layer from the other side is cut in a straight line.

This method gives a clean appearance and avoids the bulky look that can happen when thick architectural shingles are woven together.

Woven Valley

A woven valley alternates shingles from each side across the valley. This can work with some thinner three-tab shingles, but it is usually not preferred with thicker architectural shingles because it can create lumps, raised areas, and places where wind or water can cause trouble.

For most modern asphalt shingle roofs, a closed-cut valley is usually the cleaner option.

Pros and Cons of a Closed Valley Roof

Pros

• Cleaner appearance: Closed valleys blend into the roof instead of showing exposed metal.
• Often more affordable: They usually cost less than open metal valleys.
• Popular with asphalt shingles: Closed-cut valleys are widely used on modern residential roofs.
• Less visual contrast: Homeowners who dislike visible metal strips often prefer closed valleys.
• Good when installed correctly: A properly installed closed valley with good underlayment can perform well for many years.

Cons

• More shingle wear in the valley: Concentrated water flow can wear granules faster than on open roof planes.
• More debris friction: Leaves, pine needles, and grit can sit on shingle texture longer than on smooth metal.
• Installation mistakes matter: Bad nail placement or missing underlayment can create leaks.
• Harder to inspect under the surface: The waterproofing layers are hidden beneath the shingles.
• May not be ideal for every climate: Heavy snow, ice, and leaf-heavy roofs may benefit from open metal valleys.

Why Closed Roof Valleys Leak

A closed roof valley usually leaks because water is getting past the surface shingles and the backup layers are either missing, damaged, or poorly installed.

Here are the most common causes.

1. Nails Too Close to the Valley Centerline

Roofers should keep nails away from the main water channel in the valley. If nails are placed too close to the centerline, water can eventually find the nail holes and move into the roof deck.

2. Missing or Poorly Installed Ice and Water Shield

The valley should have strong underlayment protection before shingles are installed. If that layer is missing, too narrow, wrinkled, poorly bonded, or damaged, the valley has less backup protection.

3. Incorrect Shingle Cut Line

If the cut line is too close to the valley center or poorly angled, water may run under the edge instead of down the valley. A sloppy cut can also trap debris.

4. Debris Buildup

Leaves, pine needles, branches, moss, and shingle granules can collect in valleys. That debris can slow drainage and create a dam that pushes water under the shingle edges.

5. Granule Loss and Aging Shingles

Valleys handle a large amount of water. Over time, that concentrated flow can wear away shingle granules faster in the valley than on the rest of the roof.

6. Low-Slope Roof Sections

Closed valleys can be more vulnerable on low-slope roof sections because water drains more slowly. If the slope is marginal, a different valley detail may be better.

7. Soft or Rotten Roof Decking

If the roof deck under the valley is already soft from old leaks, new shingles alone will not solve the underlying issue. The damaged decking needs to be replaced during roof installation.

Signs Your Closed Valley Is Failing

You do not always need to climb on the roof to notice a valley problem. Some warning signs are visible from the ground or inside the home.

• Water stains on ceilings below a roof valley
• Dark streaks or staining along the valley line
• Shingles curling or cracking near the valley
• Missing granules in the valley area
• Heavy piles of leaves or pine needles in the valley
• Moss or algae holding moisture in the valley
• Soft roof decking near the valley
• Repeated leaks after patching
• Gutter granules collecting after heavy rain
• Interior paint bubbling near a ceiling or exterior wall

If you see interior water stains, do not assume the leak is directly above the stain. Water can travel along rafters, decking, insulation, and drywall before showing up inside.

When a Closed Valley Leak Means You May Need a New Roof

A closed valley leak does not always mean the entire roof needs to be replaced. A newer roof with one bad nail, one lifted shingle, or one small installation mistake may only need a targeted repair.

But if the roof is older, the valley leak can be a symptom of a larger roof system failure. Valleys handle more water than almost any other part of the roof, so they often reveal aging shingles, worn underlayment, soft decking, or poor installation before the rest of the roof looks terrible from the ground.

Replacement starts to make more sense when you see several of these warning signs:

• The roof is 15 to 20+ years old.
• Multiple valleys are leaking or stained.
• Shingle granules are collecting in gutters.
• Shingles are curling, cracking, or losing texture.
• The roof has already been patched several times.
• There are ceiling stains in more than one room.
• The roof deck feels soft near the valley.
• You are planning to sell the home soon.
• The roofing contractor says the valley cannot be fixed without removing a large section of shingles.

In that situation, spending money on another patch may only delay the same problem. A full roof replacement lets the contractor rebuild the valleys correctly with new underlayment, ice and water shield, flashing or shingle valley details, shingles, and proper drainage from the start.

Can I Seal a Leaking Closed Valley Myself?

You can sometimes use roofing sealant as a short-term emergency patch, but I would not treat it as a permanent fix. Roof valleys move a lot of water. If the shingles, underlayment, nail pattern, or roof deck are wrong, sealant only hides the problem for a while.

A small exposed nail or tiny crack may be temporarily sealed until a roofer can inspect it. But if the valley shingles are brittle, curling, missing granules, or leaking during every heavy rain, the issue is deeper than one tube of sealant.

On an older roof, a leaking closed valley is often the moment to compare replacement quotes instead of paying for repeated patch work.

What Happens to Valleys During a New Roof Installation?

During a proper roof replacement, the old shingles and underlayment are removed from the roof valley. This gives the contractor a chance to inspect the wood decking underneath.

A good roof installation should include:

• Removal of old shingles and underlayment in the valley
• Inspection of roof decking for rot or soft spots
• Replacement of damaged decking if needed
• New underlayment
• Ice and water shield in the valleys
• Proper closed-cut or open valley installation
• Correct nail placement away from the water channel
• Clean shingle cuts and proper water direction
• Debris cleanup from gutters and roof edges

This is one of the reasons roof replacement can be a better long-term answer on older roofs. The contractor is not just covering the visible leak. They are rebuilding the valley system from the deck up.

Questions to Ask a Roofer About Closed Valleys Before a New Roof Installation

If you are getting roof replacement quotes, do not only ask about shingle color and price. Ask how the contractor plans to build the valleys.

• Will you use closed-cut valleys or open metal valleys?
• Will ice and water shield be installed in every valley?
• How far will the underlayment extend on each side of the valley centerline?
• Will nails be kept out of the valley center area?
• How will the valley be handled on low-slope roof sections?
• Do you recommend open metal valleys for heavy leaf, snow, or ice areas?
• Will damaged or soft decking be replaced before shingles go on?
• Is valley installation covered by the workmanship warranty?
• Will the estimate clearly state the valley method?
• What happens if rotten decking is discovered after tear-off?

A good roofer should be able to answer these questions clearly. If the answer is vague, that is a red flag.

Should You Choose a Closed Valley or Open Valley for a New Roof?

For many asphalt shingle roofs, a closed-cut valley is a good choice. It looks clean, blends with the roof, and is commonly used by residential roofing contractors.

However, an open metal valley may be worth considering if your home has:

• Heavy tree coverage
• Frequent leaf buildup
• Snow and ice problems
• Very steep intersecting roof planes
• High water volume from large roof sections
• Low-slope roof areas near valleys
• A history of valley leaks

The right choice depends on your roof design, climate, shingle type, budget, and contractor’s installation quality.

Maintenance Tips for Closed Roof Valleys

Once a closed valley is installed, maintenance is mostly about keeping water moving and catching signs of wear early.

• Keep valleys clear of leaves, pine needles, and branches.
• Clean gutters so valley water has somewhere to drain.
• Check for granule loss after storms.
• Look for curling or cracked shingles near the valley.
• Trim branches that drop debris directly into valleys.
• Watch ceilings below valleys for stains.
• Schedule a roof inspection after major storms.
• Avoid walking directly in valleys unless necessary.

Do not pressure wash asphalt shingles. That can remove protective granules and shorten roof life.

Common Closed Valley Installation Mistakes

1. Skipping Ice and Water Shield

This is one of the worst shortcuts. Valleys need extra protection because they carry so much water.

2. Nailing Too Close to the Valley

Nails near the center water channel can become leak points.

3. Poor Cut Line

A crooked or badly placed cut can send water under shingles instead of down the roof.

4. Using the Wrong Valley Method for Thick Shingles

Heavy architectural shingles usually perform better with a closed-cut method than a bulky woven valley.

5. Ignoring Debris Flow

Homes under trees may need extra thought because closed valleys can hold debris more easily than open metal valleys.

6. Covering Rotten Decking

New shingles should not be installed over soft or damaged roof decking.

7. No Workmanship Warranty Clarity

Valleys are high-risk areas. Make sure the contractor’s workmanship warranty covers valley installation.

Final Verdict: Is a Closed Valley Roof a Good Choice?

A closed valley roof can be a good choice for asphalt shingle homes when installed correctly. It creates a clean appearance, usually costs less than an open metal valley, and is widely used in residential roofing.

But roof valleys are high-water areas. A closed valley depends heavily on correct underlayment, proper shingle layering, clean cuts, good nail placement, and regular debris maintenance.

If your roof is newer and one closed valley leaks, a targeted repair may be enough. But if your roof is older, losing granules, curling, leaking in multiple areas, or already patched several times, the valley leak may be telling you the roof system is near the end of its useful life.

My simple rule is this: patch a small isolated issue on a younger roof, but compare new roof installation quotes when the roof is older and the valley is only one of several warning signs.

Frequently Asked Questions

What is a closed valley roof?
A closed valley roof is a valley installation method where shingles cover the roof valley instead of leaving metal flashing exposed. In a closed-cut valley, one side of shingles runs through the valley and the other side is cut in a clean line over it.

Which is better: closed valley or open valley?
It depends on the roof. A closed valley looks cleaner and is often more affordable. An open metal valley usually sheds water, snow, ice, and debris more easily and may last longer in harsh conditions.

How long does a closed valley last?
A properly installed closed valley can last many years, but it often wears faster than open roof planes because valleys handle concentrated water flow. Shingle quality, installation, climate, debris, and maintenance all affect lifespan.

Why is my closed valley leaking?
Common causes include nails too close to the valley centerline, missing ice and water shield, poor shingle cuts, debris buildup, worn shingles, low-slope drainage issues, or soft decking under the valley.

Can I seal a leaking closed valley myself?
Roofing sealant may work as a temporary patch for a small exposed nail or minor crack, but it is not a long-term fix for worn shingles, bad underlayment, rotten decking, or incorrect valley installation.

Should I replace my roof if the valley is leaking?
Not always. A newer roof with one isolated valley issue may be repairable. But if the roof is older, has multiple leaks, missing granules, curling shingles, or repeated patch history, a full roof replacement may be the smarter long-term solution.

Are roof valleys replaced during a new roof installation?
Yes. During a proper roof replacement, the old shingles and underlayment are removed, the deck is inspected, and the valleys are rebuilt with new underlayment, ice and water shield, flashing or shingle valley details, and new shingles.

Can you install a closed valley with architectural shingles?
Yes. A closed-cut valley is commonly used with architectural shingles. Woven valleys are usually not ideal for thick architectural shingles because they can create bumps and voids.

What should I ask a roofing contractor about valleys?
Ask whether they use closed-cut or open valleys, whether they install ice and water shield, how they avoid nails near the valley centerline, and whether valley workmanship is covered by their installation warranty.

Is ice and water shield required in roof valleys?
Requirements vary by code, climate, and manufacturer instructions, but valleys are high-risk water areas and should be protected with proper underlayment. Many quality roof installations use self-adhering ice and water shield in valleys.
